Troubleshooting Logical Constructs Check if leaf has required vrf Leaf# show vrf all 2. Check on VRF if "Policy Control Enforcement...

Each POD has local instance of ISIS and COOP Inter-POD connectivity is through IPN Inter-POD BUM uses PIM-Bidir BGP in between PODs to...

Step 1: Log into ND click --> ok Step 2: Go to Dashboard it will take you to One View display Step 3: Go to Admin Console Step 4:...

APIC integrates with 3rd party VMMs Three options with Virtual VMM: VMware DVS Cisco ACI Virtual Edge Cisco Application Virtual Switch...

Port 161 ---> It is used for read based queries Port 162 ---> It is used for sending out traps. Configuring SNMP

IPv4 32 bit long & contains 4 octets. Each octet has 8 binary bits IPv4 class range Subnetting Host Bit = 0 Network Bit = 1 We got Class...

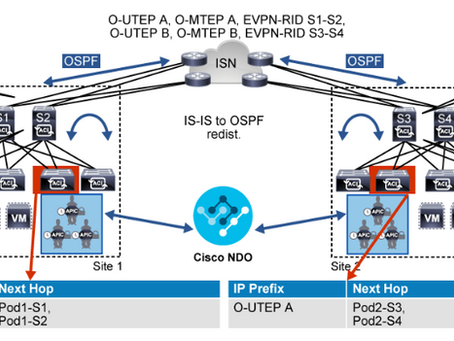

Multi-Site Connectivity can be done through ISN. The ISN between sites must support these specific functionalities: System --> System...

Features of ACI Multi-Pod Disaster Recovery : Helps create a system that ensures business operations continue even during disasters....

Each EGP is represented by PCTag 2. Shadow EPG (Firewall) connect to the service Device (EPG) 3. Traffic in between EGPs will be...

Introduction Pre-PBR Deployment Traffic Flow: Before deploying a service graph with Policy-Based Routing (PBR), Cisco ACI relies on its...

We are using a nexus switch as a Neighbour of BL We will be creating neighborship with routed interface as well as through Vlan (SVI)...

Service Graph with PBR and without PBR The design that uses service graph without PBR requires multiple VRFs. The use of service graph...

This is very useful in a lab environment in which you could establish multiple BGP neighborship with single physical link between ACI &...

Let's check the output of our Nexus Switch with whom we are going to create BGP neighbourship with ACI. n9k# show run | section bgp...

Connectivity between NK9 and Leaf Port n9k# show lldp nei int eth1/25 Device ID            Local Intf      Hold-time Capability  Port ID...

Step 1: Let’s create AP1, BD1 & EPG1 along with the following subnets. 222.222.221.1/24 —> Advertise Externally 222.222.222.1/24 —>...

The requirement here is that EPG 1 – 4 should be allowed to talk to each other without any security rules, while the rest EPGs 5 - 7...

The vzAny managed entity offers a means to link all Endpoint Groups (EPGs) within a Virtual Routing and Forwarding (VRF) instance to one...

Default fallback login APIC GUI: apic:fallback\\admin APIC CLI: apic#fallback\\admin Step 1 : Create a TACAS+ Provider Group 2) Create a...

SPAN (Switched Port Analyzer) Types of SPAN Local SPAN Support:  Supported by Cisco. Functionality: Traffic is mirrored to an interface...
