Service Graph PBR

Updated: Oct 30


Introduction


  • Pre-PBR Deployment Traffic Flow:

    • Before deploying a service graph with Policy-Based Routing (PBR), Cisco ACI relies on its fabric routing to forward traffic from the client in the EPG client to the server in EPG web.

    • Traffic is allowed based on the established contract between the EPGs.

    • The default gateway for both the client and server is the bridge domain IP address where their endpoints are deployed.


  • Traffic Flow with PBR Service Graph:

    • When a service graph with PBR is implemented:

      • Despite the forwarding table pointing directly to the destination endpoint, traffic is redirected to a service node (e.g., a firewall) based on the contract it matches.


    • The contract with the PBR service graph defines traffic redirection towards the service node.

      • The service node operates in Layer 3 mode and is integrated into the Cisco ACI fabric.

      • It routes and inspects traffic between the client and server, which are in different EPGs.


  • Service Node Integration Without PBR:

    • A service node can also be integrated into Cisco ACI using a service graph without PBR.

      • Without PBR, packet flow relies solely on the forwarding table.

      • It is necessary to ensure that the forwarding table directs traffic to the inserted service node without any redirection.

      • This is typically achieved through Virtual Routing and Forwarding (VRF) stitching, also known as a VRF sandwich.




  • Service Graph Without PBR Configuration:

    • Multiple VRFs and VRF Sandwich:

      • Requires multiple VRFs in a classic VRF sandwich setup.

      • Establishes Layer 3 outside peering between the fabric and both the internal and external firewall interfaces.


    • Traffic Flow Through Firewall:

      • Traffic between the client and web server passes through the firewall.

        • The firewall acts as a routed Layer 3 hop.

        • It has two interfaces:

          • One interface in VRF1.

          • Another interface in VRF2.


    • VRF Assignments:

      • VRF2:

        • Contains the web server subnet.

        • Includes the IP subnet of the firewall's internal interface.

      • VRF1:

        • Includes the firewall's external (outside) interface.

        • Contains the Layer 3 interface towards the client.


  • Advantages of Service Graph with PBR:


    • Simplified Configuration:

      • Utilizes a single VRF, eliminating the need for a VRF sandwich.

      • Simplifies the overall network design and configuration.

    • Traffic Redirection Based on PBR Policy:

      • Traffic is redirected to the service node (e.g., firewall) based on the PBR policy.

      • Removes the reliance on forwarding tables directing traffic through VRF stitching.

    • Selective Traffic Redirection:

      • Allows for selective traffic redirection using subjects and filters in the contract.

      • Provides greater control over which traffic is redirected compared to service graphs without PBR.


Use Cases for Service Graph with Policy-Based Routing (PBR):


Imagine a scenario where specific traffic—such as HTTPS—from one Endpoint Group (EPG) to another must pass through a firewall or an F5 load balancer. All other traffic should flow directly between the two EPGs through a normal contract without additional inspection.


  • Insertion of Firewalls or Load Balancers:

    • Seamlessly integrate firewalls or load balancers into the communication path between endpoints while maintaining the default gateway on the Cisco ACI fabric.

  • Insertion Between Same Subnet Endpoints:

    • Deploy Layer 4 to Layer 7 devices within the path of endpoints that reside on the same subnet, enabling advanced traffic management without altering the underlying network architecture.

  • Selective Traffic Separation:

    • Utilize protocol and port filtering to direct only specific types of traffic to Layer 4 to Layer 7 devices. This allows for granular control, ensuring that only designated traffic—such as HTTPS—is inspected or modified.

  • Horizontal Scaling with Symmetric PBR:

    • Implement symmetric PBR to distribute network load across multiple Layer 4 to Layer 7 devices. This approach enhances performance by horizontally scaling resources and ensures efficient load balancing.



  1. Service Graph Templates: How traffic should flow.



True: PBR service graph





2. Device: The Device tells us how many interfaces and logical connectors there are on the Service Devices. Physical Device & Interfaces it connects to the fabric.

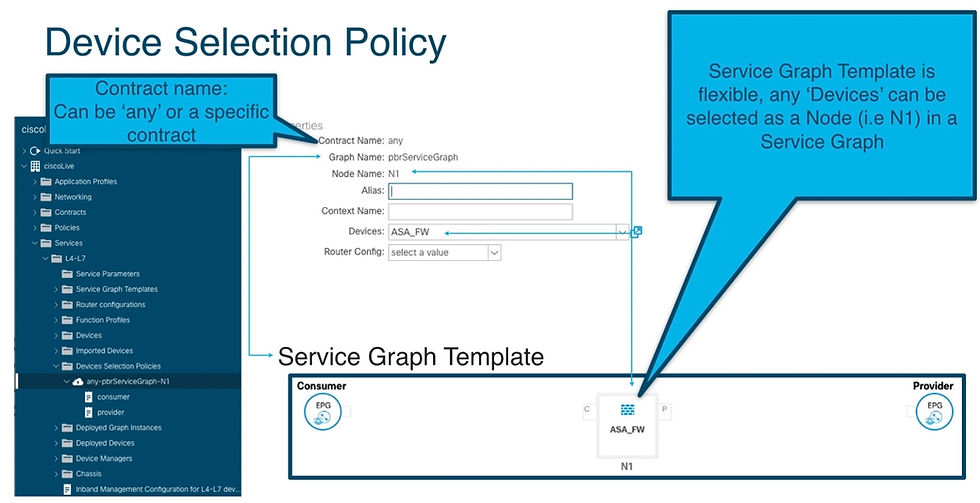

3. Device Selection Policy: It defines how devices will communicate with fabric. Ties the physical device to a graph template and contract.








4. Contract: It selects traffic to redirect to Firewall. Places contract between Consumer and Provider and the shadow EGP.





5. Disable data plane learning on PBR node bridge domain.



6. Pending
